When the first Toyota 4Runner sport utility vehicle (SUV) was launched back in 1984, it was a revolutionary new vehicle based on the mechanics of the four-wheel-drive Toyota pickup truck. The 4Runner combined the versatility and go-anywhere ability of four-wheel-drive with the comfort and utility found in passenger cars.



Twenty-five years, four generations and more than 1.5 million sales later, the 4Runner continues to evolve while remaining close to its roots. The all-new fifth-generation 4Runner is even more rugged and athletic, and packed with more power and better mileage. A completely redesigned interior and unique cargo area make the newest 4Runner smarter, more comfortable, and more versatile than ever.

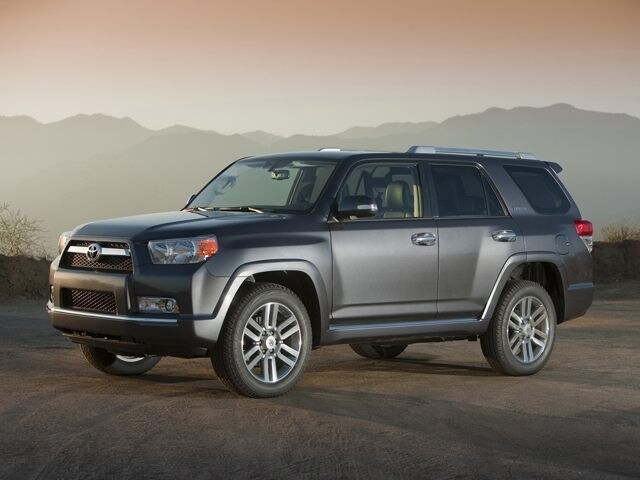

The 2010 Toyota 4Runner is taller, wider and longer and is available in a variety of configurations. It will be offered in three models, top-of-the-line Limited, a well-equipped SR5, plus a Trail grade for those who require maximum off-road capability.



Drivetrain configurations include rear wheel 4x2, part-time 4x4 and full-time multi-mode 4x4 with a locking center differential. All 4x4 models are equipped with a 4.0-liter V6 mated to a five-speed ECT-i automatic transmission. The 4x2 models will be equipped with either a 2.7-liter four-cylinder engine mated to a four-speed ECT automatic or the 4.0-liter V6 with the five-speed ECT-i automatic. Optional third-row seats allow for up to seven-person capacity.



The design strategy for the new 4Runner emphasizes a more rugged, powerful stance. Large diameter wheels and tires were added to not only improve off-road performance, but also enhance the 4Runner's truck-based characteristics. In addition to its styling emphasis on ruggedness and outdoor adventure, the new design utilizes a combination of Toyota's classic boxy form and progressive styling.



All 4Runner grades feature rugged new bumpers and wider shoulders, with newly designed head- lamp and tail-light systems, which offer a newly-minted, technical design quality and better nighttime performance. The front ends square fender flares meld with a muscular profile that links with a beefy and square rear bumper and back door.



Aluminum alloy wheels are 17-inches in diameter on SR5 and Trail grades and 20-inches on the Limited, and include a full size spare.

The 2010 4Runner is powered by a new 4.0-liter V6, which now generates 270 horsepower and 278 lb-ft of torque. Through the use of advanced engine management that includes dual independent Variable Valve Timing with intelligence (VVT-i), the new 4.0-liter engine offers the best of both worlds, adding more power while improving efficiency. For 2010, the new V6 engine produces 34 horsepower more than the prior V6, and 10 horsepower more than the optional V8 of the previous generation.



Additional mileage improvements have come from careful attention to wind flow, reducing aerodynamic drag to a Cd of 0.365. EPA-estimated mileage improves from 16 city and 21 highway to 17 city/23 highway for the 4x2, and from 16 city and 20 highway to 17 city/22 highway for 4x4 models. Both achieve an EPA-estimated 19 mpg combined, an improvement of more than five percent. With the new 4.0-liter engine, maximum towing capacity is 5,000 pounds.



In addition to the upgraded V6 engine, a proven 2.7-liter four-cylinder engine with VVT-i is available on the 4x2 SR5 model. The gutsy DOHC, 16-valve 2.7 makes 157 horsepower and 178 lb-ft of torque. Mated to a four-speed automatic transmission with 2.80:1 first gear and 0.753 overdrive 4th, the 2.7 delivers 18 city/23 highway mpg.



To build on its tradition of rugged body-on-frame construction, the newest 4Runner shares the same platform as the FJ Cruiser. Extensive frame and body reinforcements have been added, using high-tensile materials to add strength without adding weight. SR5 and Trail 4x4 models have a two-speed lever-operated, part-time system with neutral position, while the 4Runner Limited is equipped with full-time, four-wheel-drive with a locking center differential and employs a three-mode, center console-mounted switch. The new 4Runner is also equipped with a stronger rear differential over the previous model, thanks to a gear ring that has increased in size from 7.87 to 8.18 inches.



To enhance grip, the A-TRAC system is now standard equipment on all 4x4 models. The system can distribute driving force to any one wheel in contact with the ground, making terrain irregularities and slippery patches transparent to the driver. An electronic-locking rear differential is standard on the Trail grade. Axles house 3.73 gears, or 4.56:1 with the 2.7-liter engine and the differential housings have improved seals for better resistance to mud and water.



An array of advanced features, formerly only available in the Land Cruiser, further boosts off-highway capabilities. The Trail grade offers Toyota's Kinetic Dynamic Suspension System (KDSS) as an option. KDSS radically improves terrain-following ability by disconnecting stabilizer bars to allow for more axle travel, and better suspension articulation in slow, difficult terrain.



Toyota's Crawl Control (CRAWL) feature is standard on the Trail grade. CRAWL is an adjustable electro-mechanical system that can be tuned to match the terrain by selecting any of five speed levels. The system maintains an appropriate speed that keeps the vehicle under control and minimizes the load on drivetrain and suspension components. The CRAWL feature helps make traversing difficult terrain easier and safer. With the transfer case shifted into low range, Crawl Control regulates engine speed and output (along with braking force), to propel the vehicle forward or in reverse at one of the five low-speed settings. This allows the driver to maintain focus while steering over very rough level ground or steep grades, without having to also modulate the throttle, or brake, pedals.



The Trail grade also features a Multi-Terrain Select system which allows the 4x4 operator to dial in wheel slip control to match the terrain. In loose terrain such as mud and sand, more-than-normal wheel slip is permitted, allowing wheel-spin to work in the vehicle's favor. On bumpy moguls, or solid rock, wheel slip is minimized and the system acts more like a limited slip. The Mogul setting is for any extremely uneven terrain, such as V-ditches, slopes, and ridges, uphill or down.



All 4Runner 4x4 models are standard-equipped with Downhill Assist Control (DAC), which is designed to augment the low-speed ascending ability of low-range by holding the vehicle to a target speed with no driver intervention. All V6 4Runner models come standard with Hill-start Assist Control (HAC), which provides additional control for off-road driving by helping to keep the vehicle stationary while starting on a steep incline or slippery surface.

The new 4Runner may be a truck-based SUV, but it offers the kind of drivability and riding comfort more often associated with car-based platforms.



Coil springs over gas shocks are used at all four corners for a comfortable ride and controlled handling. A double-wishbone independent front suspension, combined with new, variable-flow rack and pinion steering, makes for precise control on demanding roadways. The four-link rear suspension minimizes rear axle hop and assures a smooth ride for back seat passengers.

The Limited grade comes standard with an X-REAS suspension system that further improves performance, comfort and control. X-REAS automatically adjusts the damping force of shocks when driving over bumpy surfaces, or when cornering. The system uses a center control absorber to cross-link shocks on opposite corners of the vehicle, substantially reducing pitch and yaw by offsetting opposing inputs. With X-REAS the new 4Runner corners flatter, smoother, and handles choppy pavement more easily.



On-road vehicle dynamics are further enhanced by a suite of high-performance, state-of-the-art safety systems. Standard on 4Runner is Toyota's Star Safety System?, which includes Vehicle Stability Control (VSC) with traction control (TRAC), an Anti-Lock Brake System with Electronic Brake-force Distribution (EBD) and Brake Assist. Vehicle Stability Control (VSC) helps to ensure stability by compensating for oversteer or understeer. The system uses selective braking and modulated engine output to keep the vehicle in line with the driver's intended course. On 4x2 vehicles, the Auto LSD (Limited Slip Differential) system allows for better traction on slippery sections of roadway.



The four-wheel ABS with EBD provides the 4Runner anti-lock stopping control with optimal brake proportioning, whether the vehicle is loaded or unloaded. Hill-start Assist Control (HAC), standard on all 4x4 models and the 4x2 V6, suppresses backward roll when switching from brake to accelerator. All 2010 4Runners have active headrests for driver and passenger, three-point seat belts for all seats, an energy-absorbing body structure and an energy-absorbing hood to help protect pedestrians.



A system of eight standard airbags includes front, side-mounted and knee airbags for the driver and front passenger, and side curtain airbags for the second and third row.

The all-new 4Runner has been thoughtfully equipped with features and systems to create a comfortable travel space, allowing for convenient operation in everyday use.

The larger interior has been completely redesigned with comfort and utility in mind. The front seats have a greater range of adjustment, both vertically and front to rear.



A bright, highly visible dash houses speedometer, tachometer, voltage, fuel and temp gauges, plus a combination meter that offers multiple functions. An Eco-Driving feedback system allows the driver to manage fuel consumption in real time. Within easy reach of the driver is an overhead console that organizes the off-road control switches into one location. Features like a compass indicator and outside temperature display add functionality in outdoor settings.



A manual climate control air conditioning system is standard on SR5 and Trail grades. An automatic dual zone climate control air conditioning system is standard on the Limited. The system features driver and passenger independent temperature controls, providing separate comfort levels.



The cargo area has been re-engineered to be more versatile than any SUV on the market.

More cargo space is available due to the fold-flat second-row rear seats, which do not require removal of the headrest for rearrangement. For models with three rows of seats, the third row seats are split 50/50, and they readily fold flat to allow the seatback to become the floor of the luggage compartment. They can be folded from the side, or at the rear, using separate one-touch mechanisms. With this new arrangement, more cargo space is available without removing seats, and longer items can be conveniently stored.
